The Zimmermann Formula Z brake disc is designed with the aim of simple installation paired with optimum braking under high mechanical and thermal load.  The compound developed by Zimmermann accommodates the increased demands incurred by engine tuning and optimised chassis structures.

Advantages:

  • Excellent deceleration action and no distortion of friction ring at high temperatures
  • Substantial weight saving and therefore less unsprung mass
  • Floating mounting enables radial expansion of the brake disc under relatively heavy loads, thus preventing shielding and increasing resistance to heat cracks
  • Hot spots" prevented by optimised design of ventilation channels
  • 1:1 exchange of original disc possible
  • Not subject to registration: general ABE certification supplied with disc
  • No conversion required for brake tuning

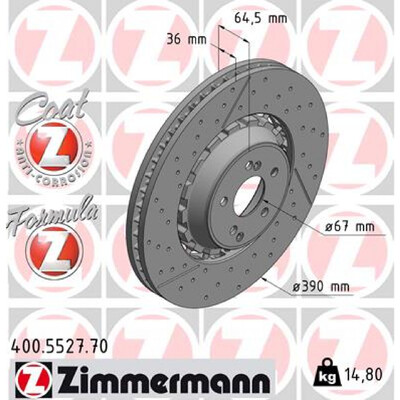

Technical Information:

Height [mm] : 64 mm
Test Mark : ECE R90 APPROVED
Outer Diameter [mm] : 390 mm
Weight [kg] : 14.8 kg
Brake Disc Type : Vented,slotted/perforated,Two-piece brake disc
Brake Disc Thickness [mm] : 36 mm
Minimum Thickness [mm] : 33 mm
Surface : Coated
Hole Arrangement/Number : 7/5
Pitch Circle Ø [mm] : 112 mm
Centering Diameter [mm] : 67 mm
Rim Hole Number : 5 -Hole
Quality : Alu-Topf schwimmend,Alu hub floating

SKU 400.5527.70_X2
Brand Zimmermann
Height [mm] 64 mm
Test Mark ECE R90 APPROVED
Outer Diameter [mm] 390 mm
Weight [kg] 14.8 kg
Brake Disc Type Vented,slotted/perforated,Two-piece brake disc
Brake Disc Thickness [mm] 36 mm
Minimum Thickness [mm] 33 mm
Surface Coated
Hole Arrangement/Number 7/5
Pitch Circle Ø [mm] 112 mm
Centering Diameter [mm] 67 mm
Rim Hole Number 5 -Hole
Quality Alu-Topf schwimmend,Alu hub floating
