The do88 Intercooler Mera Kit For Audi Rs6 (C8) & Rs7 is a vehicle-specific performance intercooler upgrade engineered for lower intake temperatures, improved airflow and reduced pressure drop. Developed by do88 for tuned and performance vehicles requiring more consistent charge-air cooling.

KEY FEATURES

• Lower intake temperatures, improved airflow and reduced pressure drop
• Reinforced high-temperature silicone components
• Application-specific design and fitment
• Developed by do88 in Sweden

PRODUCT DETAILS

Upgrade the performance of your Audi RS6 / RS7 C8 with the do88 intercooler kit!

The already effective twin intercooler system developed for the V8's twin turbo is now further refined by do88.
Developed as a direct OEM replacement, this kit includes high-quality 105mm cell packs from Garrett Motorsport. Expect a significant increase in both power and torque thanks to a design that maximizes airflow and drastically reduces inlet temperatures. The perfect upgrade for a performance car or track build - this kit is your ticket to true performance.

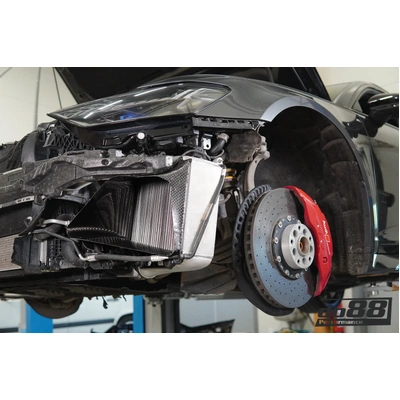

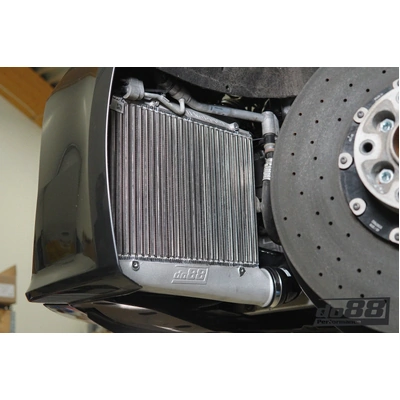

The biggest challenge in developing a performance intercooler for the RS6/RS7 is the limited space behind the bumper and wheel arches. This affects both the size of the cell pack, the end tanks and the airflow from the opening in the bumper. We have made use of every available millimeter of this space.

The cell packs are manufactured by Garrett Motorsport to do88's specifications and use advanced aerospace technology. The high-density packed cell pack consists of very thin, fine heatsinks that provide very efficient heat transfer - to ensure optimal performance even under high loads.

The uniquely designed, 3D free-form cast end tanks distribute charge air evenly across the entire cell stack. After extensive CFD analysis, 3D printing and flow bench testing, we have achieved an optimized design with maximum airflow and minimal pressure drop. The hose connections are 70 mm (2 ¾"), which is a full 37% larger than the original 60 mm (2 3/8"). This upgrade eliminates critical bottlenecks in the system - something that is crucial to improving turbo efficiency and enabling higher power output. As far as we know, do88 is the only one to offer such large connections.

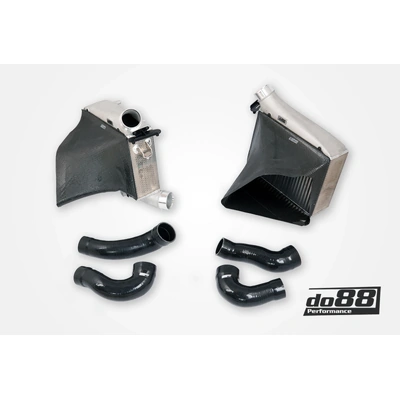

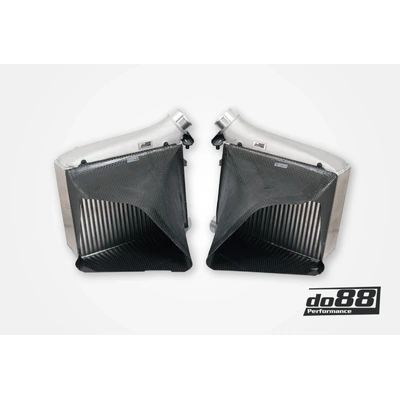

The kit also includes high-quality air guides made from 2x2 woven prepreg carbon fiber and finished with a heat-resistant gloss clear coat. These are easily installed with four screws and ensure that the 29% larger cell pack receives a constant supply of cool, fresh air.

This intercooler is part of our MERA series!
MERA stands for more cooling, better flow and higher power - MERA, simply put!

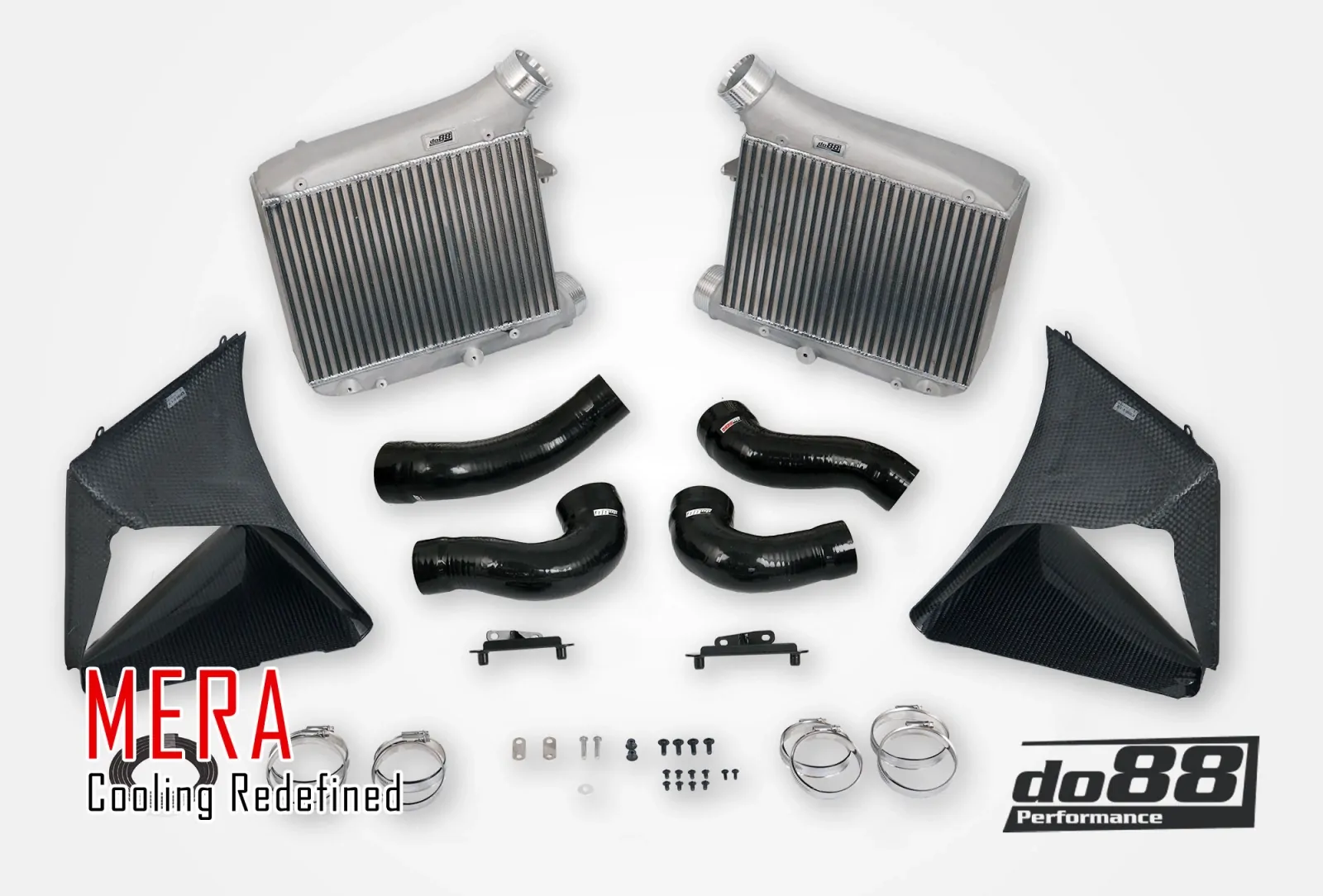

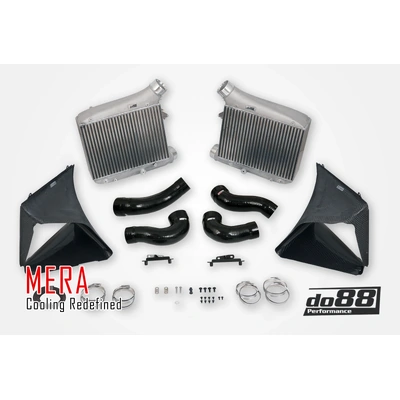

Silicone hoses that match the larger connections are included and fit the original pressure pipes. The intercooler kits are welded in-house in do88's own facility in Sweden - to guarantee the highest quality.

The original intercooler system often reaches its limit in performance, especially on tuned vehicles. Whether you run stock or with higher boost pressure, the do88 intercooler kit provides a dramatic improvement over the original.

FEATURES:

• Increased cell pack volume: 50% larger (10,063 cm³ compared to the original's 6,689 cm³).
• Increased active cooling area: 29% larger (958 cm² compared to the original's 743 cm²).
• Larger hose connections for better flow: 37% larger (Ø70 mm (2 ¾") compared to the original Ø60 mm (2 3/8").

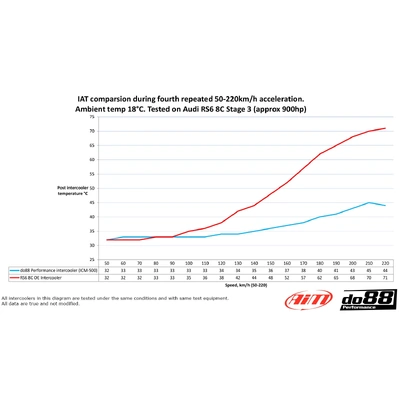

• Lower inlet temperature under identical conditions: 27°C lower than original. Exact figures can be found in the diagrams among the product images.
• Improved airflow with lower pressure drop: @ 0.125 bar / 1.81 psi pressure drop: 422 CFM (363 CFM), 16% increase. See charts for exact values.
• Bar&Plate cell pack from Garrett of motorsport cut with high density and good flow.
• Custom-made air guides in prepreg carbon fiber.
• Unique 3D free-form cast end tanks.
• Easy installation, no modifications required.

Improve the performance of your Audi RS6 / RS7 C8 with the do88 intercooler kit!

Replaces OEM Part Numbers: 4K0 145 805 P & 4K0 145 806 B

WHY CHOOSE DO88?

do88 develops vehicle-specific performance cooling, intake and turbo-system components in Sweden. Products are engineered with a focus on airflow, thermal control, dependable fitment and durable construction for European and performance vehicles.

CHECK FITMENT BEFORE ORDERING

Confirm the vehicle model, engine, model year, transmission and all listed connection sizes or specifications before ordering. Contact EMS Carparts for assistance if you are unsure about compatibility.

FREQUENTLY ASKED QUESTIONS

WHAT DOES THIS DO88 INTERCOOLER KIT DO?

It is designed to provide lower intake temperatures, improved airflow and reduced pressure drop.

WILL IT FIT MY VEHICLE?

This product is intended for the vehicle and engine application listed in the product details. Confirm the model, engine, model year and listed specifications before ordering.

IS INSTALLATION HARDWARE INCLUDED?

Included components vary by product. Review the product details and images carefully, and contact EMS Carparts if you need help confirming what is supplied.
