The do88 BigPack Volvo 700 900 Turbo 81-98 Black Hoses 76MM Throttle is a complete performance cooling and airflow upgrade engineered for improved charge-air cooling, increased airflow and reduced restriction. Developed by do88 for drivers upgrading boost, engine software or sustained performance use.

KEY FEATURES

• Improved charge-air cooling, increased airflow and reduced restriction
• CAD-developed component design
• Reinforced high-temperature silicone components
• Durable aluminium construction
• Application-specific design and fitment
• Developed by do88 in Sweden

VEHICLE FITMENT

Volvo 760 | Year models: 1984-1990 | Engine: B23FT B23ET 230FT B230GT B230ET

PRODUCT DETAILS

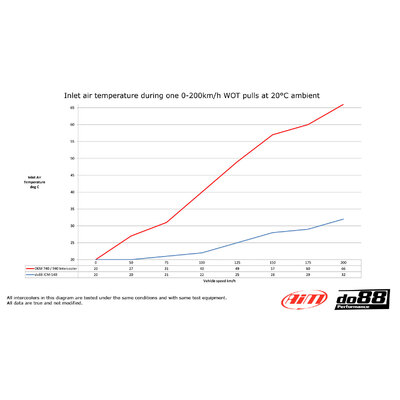

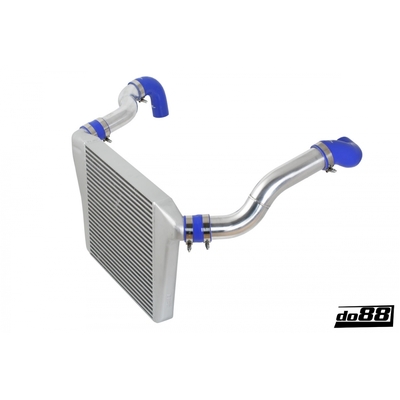

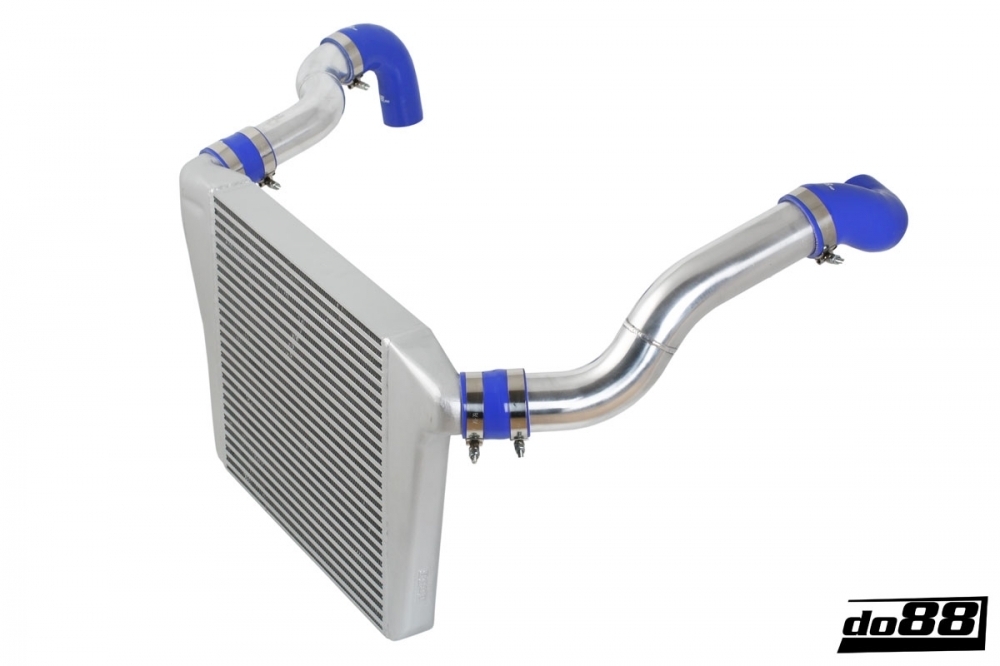

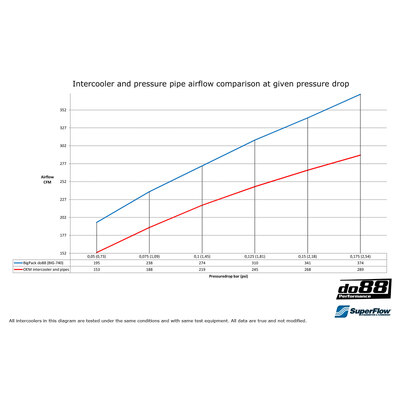

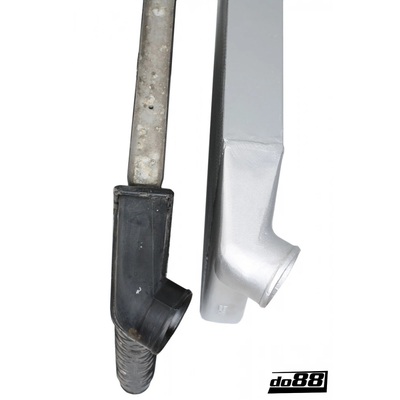

The best Volvo 740 940 Turbo 1981-98 performance intercooler kit on the market! This BigPack includes both do88 performance intercooler and intercooler pipe kit. This kit is for you with high horsepower goal and wants to upgrade to the absolute best! "Only" changing to our performance intercooler is a Big improvement but together with our pressure pipe kit the improvement is Huge! Our pressure pipes has better airflow than the stock pipes, this we have verified in several tests both in car and in our own SuperFlow SF-1020 flow bench. Significant advantages with do88 BigPack (OEM intercooler/pipes): - Core volume: 11906m3 (5377cm3), do88 is 221% larger! - Air flow at 0,15bar/2,18psi pressure drop: 341CFM (268CFM), do88 27% higher! See diagram below! - Post intercooler air temperature at same conditions: 32°C (66°C), do88 34°C lower! See diagram below! - Fits all cars in list below! The OEM intercooler rubber supports in both the top and bottom needs to be trimmed slightly because of the increased thickness. BigPack includes a full aluminum performance intercooler and a complete 2.5" / 2,75" pipe kit and silicone hoses. This BigPack replaces everything between the turbo outlet and the throttle body this why it drastically improves the airflow / cooling performance compared to the original. do88 performance intercooler are an all-aluminum construction with cad designed, flow optimized cast end tanks and optimized core design to achieve best possible cooling efficiency combined with lowest possible pressure drop! The pressure pipe is manufactured in 2.5" / 2,75" mandrel bent aluminum pipe. Custom made high quality silicone hoses with 4 layers of polyester/aramid reinforcement. These hoses can handle very high temperature and pressure! Always remember that the OEM intercooler was designed for the power level the car was built for and a power increase or even very hard use of the car in a standard version may cause that the OEM intercooler don't have the performance you need. So only after engine software tune do88 BigPack will give a performance increase over the OEM intercooler! do88 BigPack comes with all hardware necessary for installation. Included parts in this BigPack: 1. Performance intercooler 2. One 2.5" pressure pipe (Turbo-Intercooler) 3. One 2,75" pressure pipe (Intercooler-Throttle body) 4. Four silicone hoses 5. Eight T-bolt hose clamps

When you order this BigPack, there are two choices that needs to me made: 1. Color: Three different hose colors are avalible Blue / Black / Red. There are no performance difference between the different colors, choose which color you think will be best for your car. 2. Throttle body size: "63mm Standard" if you have the original throttle body on your car. "76mm ( 3inch )" if you have switched to a 3 inch throttle body .

WHY CHOOSE DO88?

do88 develops vehicle-specific performance cooling, intake and turbo-system components in Sweden. Products are engineered with a focus on airflow, thermal control, dependable fitment and durable construction for European and performance vehicles.

CHECK FITMENT BEFORE ORDERING

Confirm the vehicle model, engine, model year, transmission and all listed connection sizes or specifications before ordering. Contact EMS Carparts for assistance if you are unsure about compatibility.

FREQUENTLY ASKED QUESTIONS

WHAT DOES THIS DO88 BIGPACK DO?

It is designed to provide improved charge-air cooling, increased airflow and reduced restriction.

WILL IT FIT MY VEHICLE?

This product is intended for Volvo 760 | Year models: 1984-1990 | Engine: B23FT B23ET 230FT B230GT B230ET. Confirm the model, engine, model year and listed specifications before ordering.

IS INSTALLATION HARDWARE INCLUDED?

Included components vary by product. Review the product details and images carefully, and contact EMS Carparts if you need help confirming what is supplied.
